Large Capacity High Speed Refrigerated /Ventilated Centrifuge CH210R/CH210

Large Capacity High Speed Refrigerated /Ventilated Centrifuge CH210R/CH210

CH210R/CH210

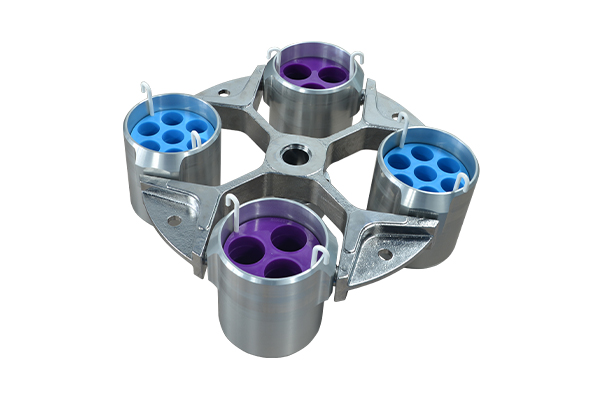

Angle rotor 6x100ml.Swing rotor 4x750ml
(Maximum speed of the main engine: 21000rpm, 32752xg)
CH210R/CH210 features quick acceleration,high running speed, large capacity and comes with a variety of rotors. CH210R adopt the latest VF compressor with PID dynamic intelligent temperature control technology and dual channel frequency conversion refrigeration system. It's top level in the world, meet customer's high-precision temperature control experiments and protect temperature sensitive samples. It is the first choice for molecular biology, protein, DNA, RNA, cell separation and clinical medicine.

Consult

Features
Technical Parameters
Rotor Options

◆7-inch HD touch screen( glove-friendly), setting parameters and running parameters at a glance. ◆Input the value directly by touch screen for parameter setting, which is fast and convenient. ◆According to the time interval of the experiment, the sleep time of the instrument can be set(user-defined), which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument. ◆AC variable frequency motor, no carbon pollution, maintenance free, long service life, speed control accuracy less than 10 r/min. ◆Up to 5 programs can be invoked for step centrifugation. ◆100 user-defined program groups can be set and named easily. Which is more convenient to invoke and distinguish different experiments in use, so as to realize the repeatability of experiment. ◆11 Acceleration and 12 Deceleration rates, to achieve best centrifugal effect. ◆The running records and diagnostic records are saved automatically, user can effectively check the operation of the instrument and the separation of each batch of samples.
Model Large Capacity High Speed Refrigerated/Ventilated Centrifuge Model Number CH210R CH210 Orde No 0202253015 0203270012 Max Speed Angle Rotor 21000r/min Swing Rotor 4200r/min Angle Rotor 21000r/min Swing Rotor 4200r/min Max RCF Angle Rotor 32752xg       Swing Rotor 3860xg Angle Rotor 32752xg       Swing Rotor 3860xg Max Capacity Angle Rotor 6x100ml       Swing Rotor 4x750ml Angle Rotor 6x100ml       Swing Rotor 4x750ml Speed Accuracy ±10r/min Time Setting Range 1s~99min59s/1min~99h59min/1s~99h59min59s Timing mode Start timing, Speed timing, Continuous timing Temperature Setting Range -20℃~40℃ / Temperature Accuracy Max speed temperature controlled to 4℃,±1℃ / Pre-cooling function Yes / Compressor Unit VF compressor unit(R134a) / Noise ≤65dB (A) Short Spinning Yes Yes Rotor Identification Yes Yes Voltage AC 220 ± 22V 50/60Hz Power 1.6kW 900W Dimension(WxDxH) 590x740x850mm Package Dimension (WxDxH) 750x880x1200mm Net Weight 180kg 130kg

Model	Large Capacity High Speed Refrigerated/Ventilated Centrifuge
Model Number	CH210R	CH210
Orde No	0202253015	0203270012
Max Speed	Angle Rotor 21000r/min Swing Rotor 4200r/min	Angle Rotor 21000r/min Swing Rotor 4200r/min
Max RCF	Angle Rotor 32752xg Swing Rotor 3860xg	Angle Rotor 32752xg Swing Rotor 3860xg
Max Capacity	Angle Rotor 6x100ml Swing Rotor 4x750ml	Angle Rotor 6x100ml Swing Rotor 4x750ml
Speed Accuracy	±10r/min
Time Setting Range	1s~99min59s/1min~99h59min/1s~99h59min59s
Timing mode	Start timing, Speed timing, Continuous timing
Temperature Setting Range	-20℃~40℃	/
Temperature Accuracy	Max speed temperature controlled to 4℃,±1℃	/
Pre-cooling function	Yes	/
Compressor Unit	VF compressor unit(R134a)	/
Noise	≤65dB (A)
Short Spinning	Yes	Yes
Rotor Identification	Yes	Yes
Voltage	AC 220 ± 22V 50/60Hz
Power	1.6kW	900W
Dimension(WxDxH)	590x740x850mm
Package Dimension (WxDxH)	750x880x1200mm
Net Weight	180kg	130kg
