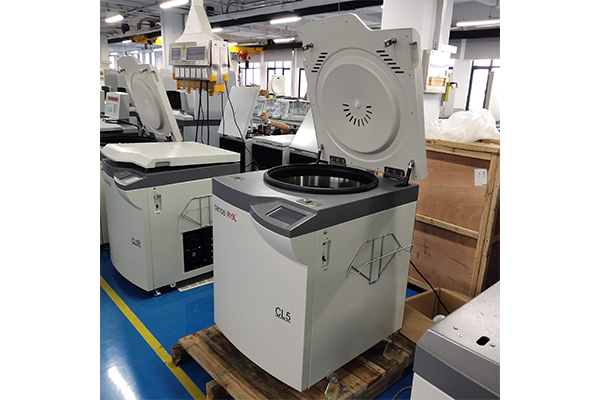

Large Capacity Low Speed Refrigerated /Ventilated Centrifuge CL5R/CL5

Large Capacity Low Speed Refrigerated /Ventilated Centrifuge CL5R/CL5

CL5R/CL5
Angle rotor 6x500ml. Swing rotor 4x1000ml
(Maximum speed of the main engine:5000rpm, 6100xg)
CL5R(refrigerated)CL5(ventilated) are a new generation of smart centrifuges with new UI interface design to meet the new demand of customers. Featuring small footprint and cost-effective.It can quicken separation with 6x500ml or 4x1000ml swing rotor. Enhanced ergonomics combined with the quick set-up of traceable,reproducible runs makes the centrifuge CL5R/CL5 the choice for simplified blood processing productivity.

Consult

Features
Technical Parameters
Rotor Options

◆Blood components separation: It can separate 4x450ml triple blood bags or 8x200ml triple blood bags with quick centrifugation programs, compact design as well as ideal cost-effectiveness. ◆Multiple adapters available, accommodate to almost all the tubes used in hospitals. Swing rotor 6x500ml, it can spin up to 168pcs vacuum blood collection tube in one cycle, meet the requirement of high-volume mass centrifugation in hospital. ◆It can handle the samples with large capacity or with multiple tubes. ◆Equipped with triple protection structure of inner chamber, jacket and housing. Non-contact imbalance protection and multiple protective functions, including the protection of over-speed, over-temperature, motor over-heating as well as door lid, ensure safety of samples, centrifuge and operator. ◆Featuring 10 ACC and 11 DEC rate to prevent second emulsion or turbid, to achieve best centrifugation result. ◆In Manual mode, parameters can be set quickly. RCF and speed be shifted by just touch the key. The stability of temperature and speed during spinning can be viewed through the curve. ◆Running data,error code record and operation record can be stored through the system setting. ◆Chinese/English/German/French/Spanish operation language optional. And user authority management and other characteristic functions can be managed as well.
Model Large Capacity Low Speed Refrigerated/Ventilated Centrifuge Model Number CL5R CL5 Orde No 0204256000 0205255000 Max Speed Angle Rotor 5000r/min Swing Rotor 5000r/min Angle Rotor 5000r/min Swing Rotor 5000r/min Max RCF Angle Rotor 4640xg       Swing Rotor 6100xg Angle Rotor 4640xg       Swing Rotor 6100xg Max Capacity Angle Rotor 6x500ml     Swing Rotor 4x1000ml Angle Rotor 6x500ml     Swing Rotor 4x1000ml Speed Accuracy ±10r/min Time Setting Range 1min-99h59min Timing mode Start Timing after Spinning,Start Timing after Reach Setting Speed, Continuous Timing Operation at an appointed Time Temperature Setting Range -20℃~40℃ / Temperature Accuracy ±1°C / Pre-cooling function Yes / Compressor Unit Environment friendly refrigerant (R404a) / Noise ≤65dB (A) Voltage AC 220 ± 22V 50Hz Power 3.0kW 2.0kW Dimension(WxDxH) 700x880x930mm Package Dimension (WxDxH) 820x1000x1080mm Net Weight 260kg 220kg

Model	Large Capacity Low Speed Refrigerated/Ventilated Centrifuge
Model Number	CL5R	CL5
Orde No	0204256000	0205255000
Max Speed	Angle Rotor 5000r/min Swing Rotor 5000r/min	Angle Rotor 5000r/min Swing Rotor 5000r/min
Max RCF	Angle Rotor 4640xg Swing Rotor 6100xg	Angle Rotor 4640xg Swing Rotor 6100xg
Max Capacity	Angle Rotor 6x500ml Swing Rotor 4x1000ml	Angle Rotor 6x500ml Swing Rotor 4x1000ml
Speed Accuracy	±10r/min
Time Setting Range	1min-99h59min
Timing mode	Start Timing after Spinning,Start Timing after Reach Setting Speed, Continuous Timing Operation at an appointed Time
Temperature Setting Range	-20℃~40℃	/
Temperature Accuracy	±1°C	/
Pre-cooling function	Yes	/
Compressor Unit	Environment friendly refrigerant (R404a)	/
Noise	≤65dB (A)
Voltage	AC 220 ± 22V 50Hz
Power	3.0kW	2.0kW
Dimension(WxDxH)	700x880x930mm
Package Dimension (WxDxH)	820x1000x1080mm
Net Weight	260kg	220kg
