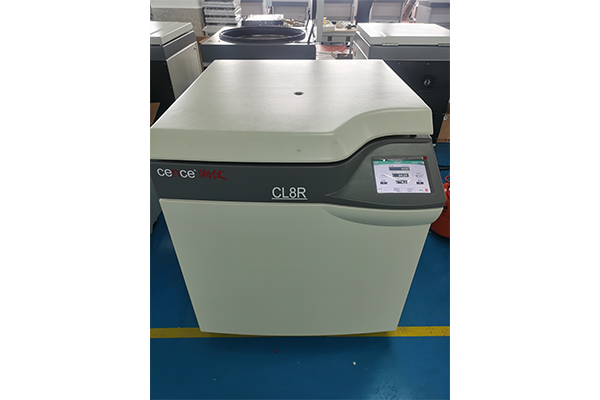

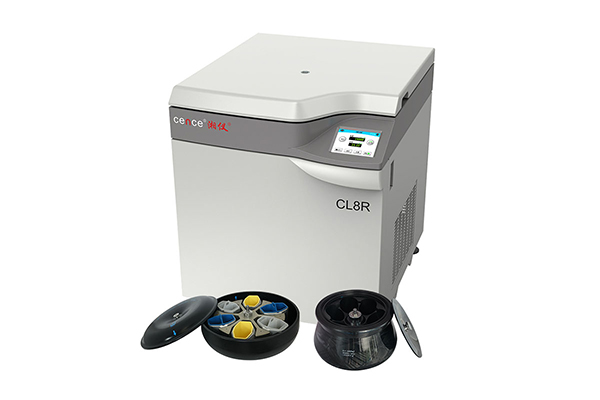

Super-Large Capacity Low Speed Refrigerated Centrifuge CL8R

Super-Large Capacity Low Speed Refrigerated Centrifuge CL8R

CL8R

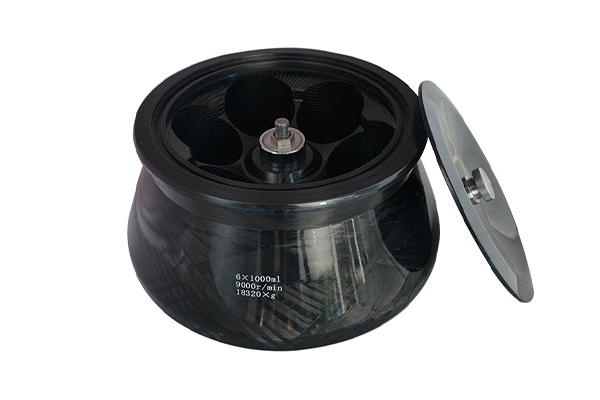

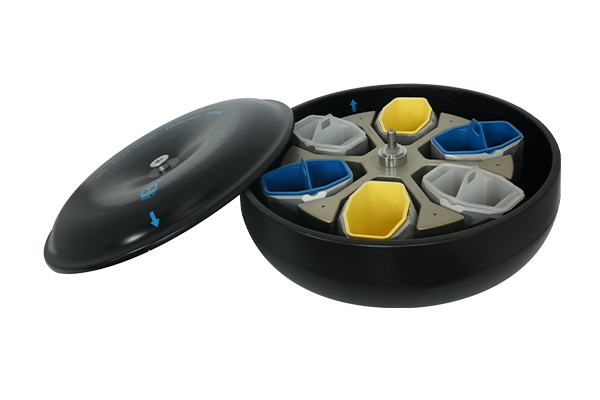

Angle rotor 6x1000ml. Swing rotor 8x2200ml
(Maximum speed of the main engine:9000rpm, 18610xg)
CL8R super-large capacity refrigerated centrifuge , a new and smart centrifuge, which is jointly developed by the well-known centrifuge manufacturer and national key university. lt has passed the MCA test and rotor service life test by authority agency in the United States. Max capacity up to 8x2200ml, it is the preferred product in the fields of blood bank,pharmacy and biological products.

Consult

Features
Technical Parameters
Rotor Options

◆Automatic door locking system (optional)
The centrifuge door can be opened or closed by a single soft touch of a button Door lid come with intelligent anti pinch device.
◆Automatic suction device of centrifuging windshield (optional )
The windshield is sucked to the door lid when opened without labor intervention prevent it from falling down.
◆Safe Structure
The overall unit has passed MCA ( (Maximum Credible Accident test ). After MCA is generated, the centrifuge door lid shall not be opened, and no solid greater than 0.5mm shall blown out of the centrifuge chamber, the position movement shall not exceed 30cm, ensure the personal safety of instrument operator to the greatest extent, (MA test video can be provided)
◆Reliable Material
Centrifuge chamber adopt 2mm thick 316L stainless steel , Housing (3mm Q235 steel ), Containment (22mm Q235 steel ).Diaphragm in door lid (2.5mm Q235 steel )
◆Energy saving
Dynamic compressor control (DCC) technology for optimized cooling performance, When the door id is opened, the compressor is closed or the sleep time can be set to save energy., Rotor with windshield, little friction and generates little heat.
◆Super-large capacity
It can process sample with the capacity of 8x2200m,6x2400ml, separating max 17.6L sample in one cycle, which greatly improves the production efficiency.
◆Built-in safety
Featuring multiple protection, Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
◆Extensible
The system adopts unified and standard Ethernet communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring.
◆Programmable
Save up to 3000 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps set speed, time, temperature, to meet the diversified experimental needs.
◆ACC/DEC Rates
Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifuging result.
◆Main Interface Function
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by soft touch the key. For the online monitoring of temperature and speed, the stability of temperature and speed during spinning can be viewed through the curve
◆Powerful System Setting Function
Running data, error code record and operation record can be stored through the system setting. Chinese / English operation language optional. And user authority management and other characteristic functions can be managed as well.
◆Centrifuge Management System( Optional)
It can monitor 1 to 100 centrifuges through intelligent terminal (computer, monitor the operation status of centrifuges, and save relevant records of centrifuge operation, establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge.
Model Super-Large Capacity Low Speed Refrigerated Centrifuge Model Number CL8R Orde No 0204258000 Max Speed Angle Rotor 9000r/min Swing Rotor 4500r/min Max RCF Angle Rotor 18610xg Swing Rotor 6756xg Max Capacity Angle Rotor 6x1000ml Swing Rotor 8x2200ml Time Setting Range two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min Timing mode Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time Temperature Setting Range ‘-20℃~40℃,Setp 1℃ ajustable, The fast pre-cooling temerature can reach -20℃ Sammple Temperature Accuracy Ensure sample (liquid) temperature accuracy controlled to +1°C Temperature Accuracy ±2°C Speed Accuracy ±10r/min Voltage AC 220 ± 22V 50Hz Power 7.5kW Noise ≤70dB (A) Rotor ldentification Yes lmbalance Protection Yes Pre-cooling function Yes Computer Contral RS485 or RS232 Protection Function lmbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-speed Protection.Over-temperature Protection Dimension(WxDxH) 875x996x1000mm Package Dimension (WxDxH) 1080x1310x1340mm Net Weight 575Kg

Model	Super-Large Capacity Low Speed Refrigerated Centrifuge
Model Number	CL8R
Orde No	0204258000
Max Speed	Angle Rotor 9000r/min	Swing Rotor 4500r/min
Max RCF	Angle Rotor 18610xg	Swing Rotor 6756xg
Max Capacity	Angle Rotor 6x1000ml	Swing Rotor 8x2200ml
Time Setting Range	two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min
Timing mode	Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time
Temperature Setting Range	‘-20℃~40℃,Setp 1℃ ajustable, The fast pre-cooling temerature can reach -20℃
Sammple Temperature Accuracy	Ensure sample (liquid) temperature accuracy controlled to +1°C
Temperature Accuracy	±2°C
Speed Accuracy	±10r/min
Voltage	AC 220 ± 22V 50Hz
Power	7.5kW
Noise	≤70dB (A)
Rotor ldentification	Yes
lmbalance Protection	Yes
Pre-cooling function	Yes
Computer Contral	RS485 or RS232
Protection Function	lmbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-speed Protection.Over-temperature Protection
Dimension(WxDxH)	875x996x1000mm
Package Dimension (WxDxH)	1080x1310x1340mm
Net Weight	575Kg
