Large Capacity High Speed Refrigerated Centrifuge GL-23M

Large Capacity High Speed Refrigerated Centrifuge GL-23M

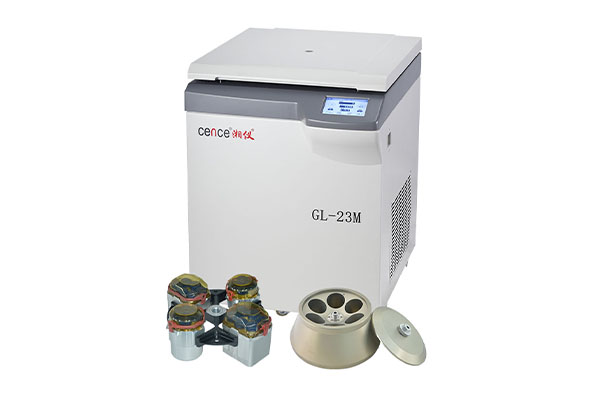

GL-23M
Angle rotor 4x1000ml; Swing rotor 4x750ml
(Maximum speed of the main engine:23000rpm, 60460xg)
Centrifuge GL-23M is an international leading level centrifuge with its outstanding parameters.It is widely used in molecular bio-logy,biochemistry
and other high-tech fields, for separation and concentration of cytoplasm, virus bacteria and chemical substances.

Consult

Features
Technical Parameters
Rotor Options

◆7-inch HD touch screen, intuitive display and easy to operate. The setting parameters and running parameters can be displayed simultaneously. ◆Data records:Data traceability management, running history records, diagnosis records can be checked on the screen or exported by USB port and saved to the relevant storage device, which can ensure the data integrity. ◆Super powerful control system, offering step centrifugation, scheduled start, sample ID, curve mode, program mode, multi-language selection and other functions. ◆Strong safety performance, the user management function can prevent tampering and removing programs accidentally. ◆Stable centrifugation performance, the max speed up to 23000r/min, and a variety of rotors are optional, which can easily help you to achieve rapid sample separation. ◆Automatic rotor identification. Imbalance protection, over-speed protection, door-lock protection and so on. ◆All aluminum alloy rotors are forged with 7075-T6 series aluminum alloy, the surface is hard oxidation, with thick oxide layer and strong corrosion resistance. ◆Direct drive, no need vacuumizing, replacing belt and maintenancing vacuum system.
Model Large Capacity High Speed Refrigerated Centrifuge Model Number GL-23M Orde No 202125000 Max Speed Angle Rotor 23000r/min Swing Rotor 4000r/min Max RCF Angle Rotor 60460xg Swing Rotor 3500xg Max Capacity Angle Rotor 4x1000ml Swing Rotor 4x750ml Speed Accuracy ±10r/min Time Setting Range 1min-99h59min Timing mode Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time Temperature Setting Range -20℃~40℃ (1℃ adjustable) Temperature Accuracy ±1°C Pre-cooling function Yes Steps Centrifugation Yes(100 programs,each programs with 5 steps, More programs can be saved by adding external memory card) Compressor Unit Environment-friendly refrigerant(R404a) Noise ≤65dB (A) Voltage AC 220 ± 22V 50Hz Power 5kW Dimension(WxDxH) 730x930x960mm Package Dimension (WxDxH) 880x1120x1180mm Net Weight 260kg

Model	Large Capacity High Speed Refrigerated Centrifuge
Model Number	GL-23M
Orde No	202125000
Max Speed	Angle Rotor 23000r/min	Swing Rotor 4000r/min
Max RCF	Angle Rotor 60460xg	Swing Rotor 3500xg
Max Capacity	Angle Rotor 4x1000ml	Swing Rotor 4x750ml
Speed Accuracy	±10r/min
Time Setting Range	1min-99h59min
Timing mode	Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time
Temperature Setting Range	-20℃~40℃ (1℃ adjustable)
Temperature Accuracy	±1°C
Pre-cooling function	Yes
Steps Centrifugation	Yes(100 programs,each programs with 5 steps, More programs can be saved by adding external memory card)
Compressor Unit	Environment-friendly refrigerant(R404a)
Noise	≤65dB (A)
Voltage	AC 220 ± 22V 50Hz
Power	5kW
Dimension(WxDxH)	730x930x960mm
Package Dimension (WxDxH)	880x1120x1180mm
Net Weight	260kg
