Large Capacity High Speed Refrigerated Centrifuge H2500R-2

Large Capacity High Speed Refrigerated Centrifuge H2500R-2

H2500R-2
Angle rotor 4x1000ml; Swing rotor 4x750ml
(Maximum speed of the main engine:25000rpm, 64800xg)

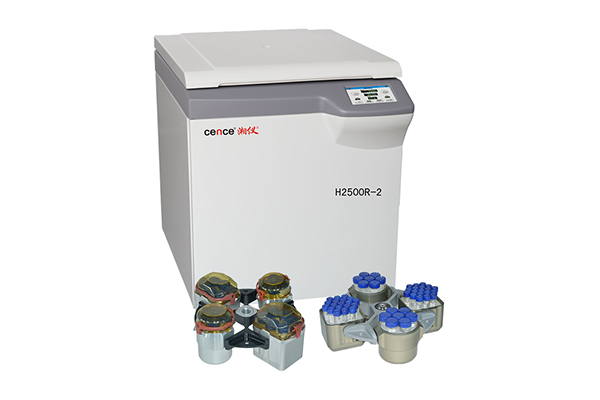

H2500R-2 high speed refrigerated centrifuge ingrates many high-technologies of Cence/Xiangyi and new design elements. Enhanced ergonomics design and easy to operate.The breakthrough of high-speed operation technology makes the max speed up to 25000r/min with RCF at 64800xg. It is widely used in academic research,scientific research and bioengineering etc.

Consult

Features
Technical Parameters

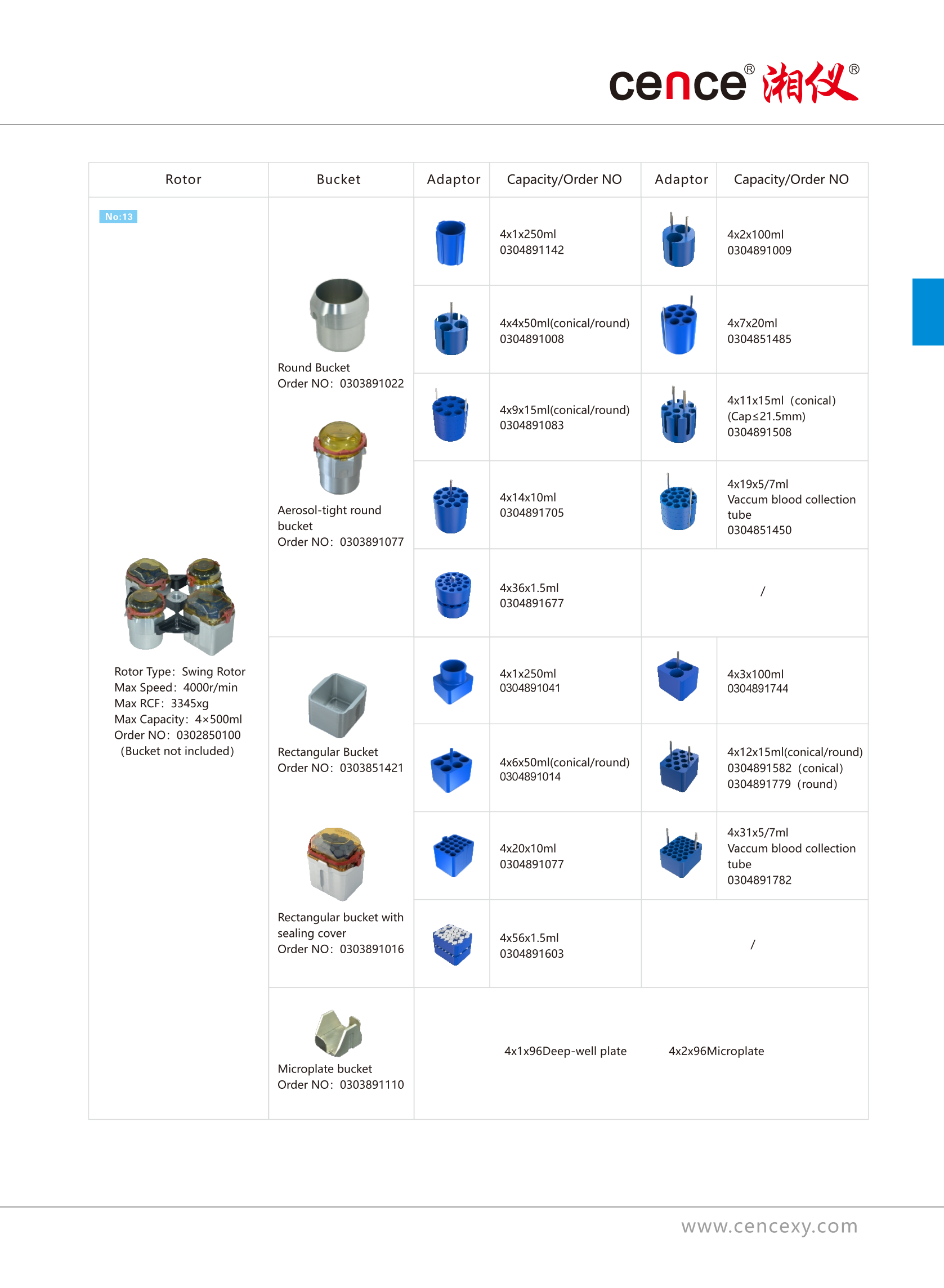

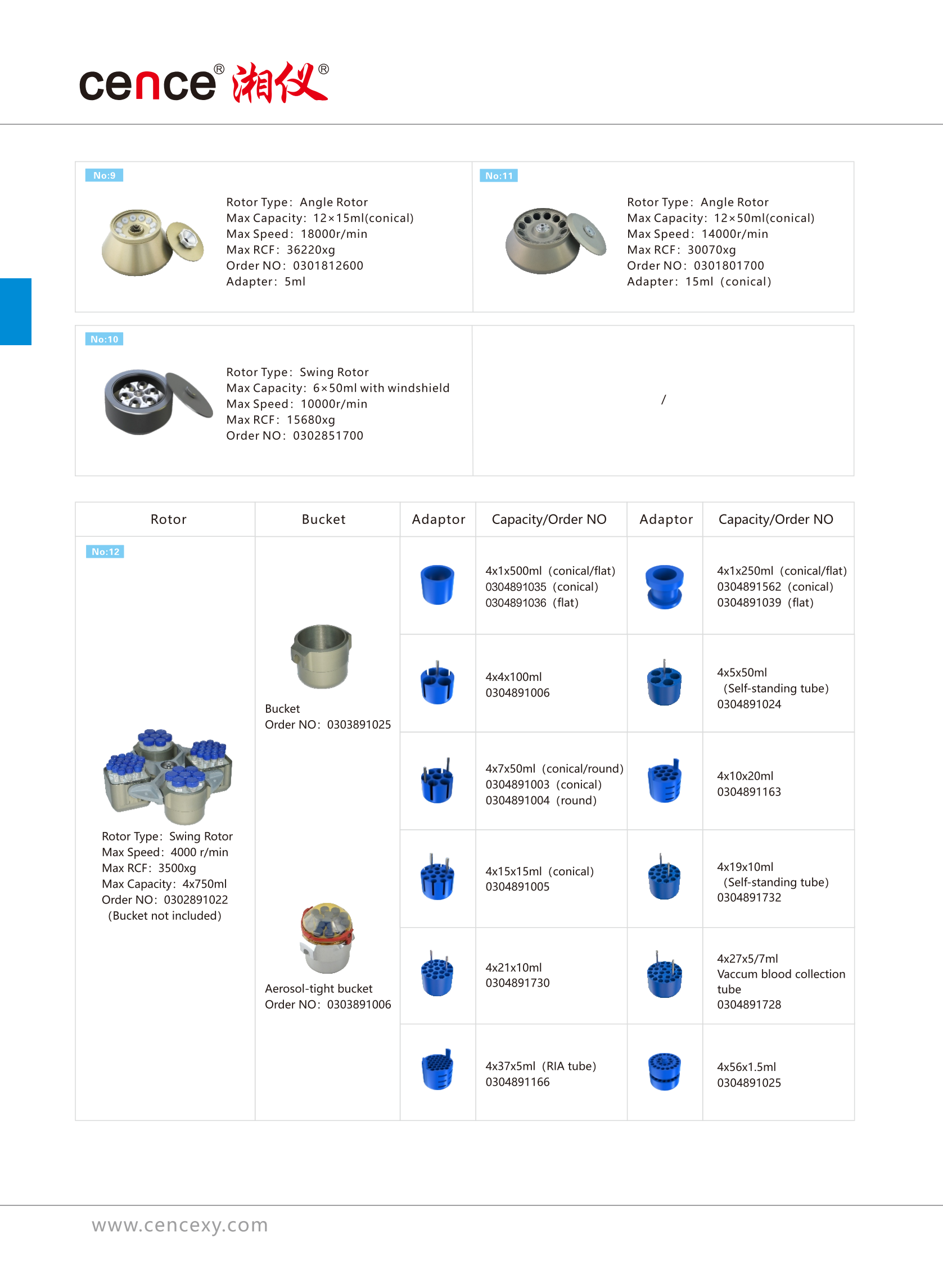

Rotor Options

◆Max speed up to 25000r/min, Max RCF up to 64800xg ( with NO.1 Rotor).Choose from 13 optional rotors to find the ideal fit for your application. ◆Automatic rotor identification,automatic over-speed protection for added safety. ◆7-inch touchscreen interface with bright, highly visible, and durable display simplifies run set-up. The setting parameters and running parameters can be displayed simultaneously. ◆Automatic storage of main machine and rotor operating parameters, automatic calculation of rotor service life, and alarm. ◆Directly driven by a high-torque variable frequency motor, with large starting torque and short acceleration time. ◆Equipped with multiple protection against imbalance,over-temperature, over-speed,to ensure user's safety as well as instrument. ◆Data records:Data traceability management, running history records, diagnosis records can be checked on the screen or exported by USB port and saved to the relevant storage device,which can ensure the data integrity. ◆Super powerful control system, offering step centrifugation, scheduled start, sample ID, curve mode, program mode, multi-language selection and other functions. ◆All aluminum alloy rotors are forged with 7075-T6 aviation grade aluminum alloy, the surface is hard oxidation, with thick oxide layer and strong corrosion resistance.
Model Large Capacity High Speed Refrigerated Centrifuge Model Number H2500R-2 Orde No 0202124000 Max Speed Angle Rotor 25000r/min Swing Rotor 4000r/min Max RCF Angle Rotor 64800xg Swing Rotor 3500xg Max Capacity Angle Rotor 4x1000ml Swing Rotor 4x750ml Speed Accuracy ±10r/min Time Setting Range 1min-99h59min Timing mode Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time Temperature Setting Range -20℃~40℃ (1℃ adjustable) Temperature Accuracy ±1°C Pre-cooling function Yes Steps Centrifugation Yes(100 programs,each programs with 5 steps, More programs can be saved by adding external memory card) Compressor Unit Environment-friendly refrigerant(R404a) Noise ≤65dB (A) Voltage AC 220 ± 22V 50Hz Power 5kW Dimension(WxDxH) 730x930x960mm Package Dimension (WxDxH) 880x1120x1180mm Net Weight 260kg

Model	Large Capacity High Speed Refrigerated Centrifuge
Model Number	H2500R-2
Orde No	0202124000
Max Speed	Angle Rotor 25000r/min	Swing Rotor 4000r/min
Max RCF	Angle Rotor 64800xg	Swing Rotor 3500xg
Max Capacity	Angle Rotor 4x1000ml	Swing Rotor 4x750ml
Speed Accuracy	±10r/min
Time Setting Range	1min-99h59min
Timing mode	Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time
Temperature Setting Range	-20℃~40℃ (1℃ adjustable)
Temperature Accuracy	±1°C
Pre-cooling function	Yes
Steps Centrifugation	Yes(100 programs,each programs with 5 steps, More programs can be saved by adding external memory card)
Compressor Unit	Environment-friendly refrigerant(R404a)
Noise	≤65dB (A)
Voltage	AC 220 ± 22V 50Hz
Power	5kW
Dimension(WxDxH)	730x930x960mm
Package Dimension (WxDxH)	880x1120x1180mm
Net Weight	260kg
