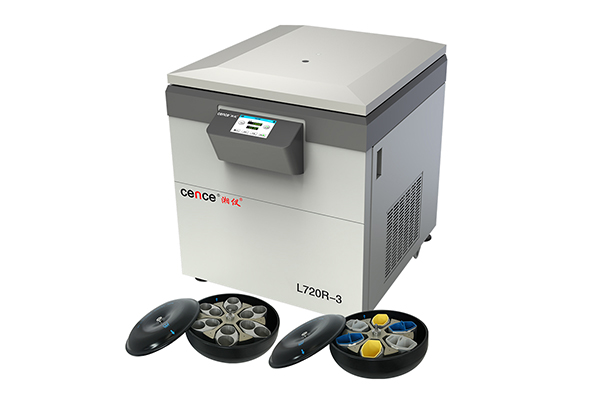

Large Capacity Low Speed Refrigerated Centrifuge L720R-3

Large Capacity Low Speed Refrigerated Centrifuge L720R-3

L720R-3
Angle rotor 6x1000ml；Swing rotor 6x2400ml
(Maximum speed of the main engine:7200rpm, 12166xg)
L720R-3 is a large capacity low-speed refrigerated centrifuge with advance technology and reliable performance. It’s popular by users for many years 7-inch HD touch screen and user-friendly Ul. Max capacity 6x2400ml, it's the first choice in the fields of blood banks, pharmacy and biological products.

Consult

Features
Technical Parameters

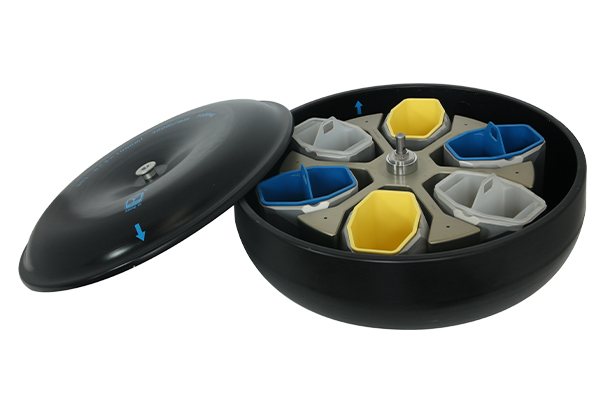

Rotor Options

◆Large capacity Up to 6x2400ml capacity, it can separating 14.4L sample in one cycle, which greatly improves the production efficiency. ◆Safe Structure The overall unit has passed MCA , (Maximum Credible Accident test )After MCA is generated, the centrifuge door lid shall not be opened, and no solid greater than 0.5mm shall blown out of the centrifuge chamber, the position movement shall not exceed 30cm, ensure the personal safety of instrument operator to the greatest extent. ( MCA test video can be provided). ◆Reliable Material Centrifuge chamber adopt 2mm thick 316L stainless steel, Housing (3mm Q235 steel ), Containment (22mm Q235 steel ), Diaphragm in door lid (2.5mm Q235 steel ) ◆Energy saving Dynamic compressor control (DCC) technology for optimized cooling performance, When the door id is opened, the compressor is closed or the sleep time can be set to save energy., Rotor with windshield, little friction and generates little heat. ◆Built-in safety Featuring multiple protection , Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on. ◆Extensible The system adopts unified and standard Ethernet communication interface and provides key parameter point table , to facilitate system expansion and bring data into system monitoring. ◆Programmable Save up to 3000 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps set speed, time, temperature ), to meet the diversified experimental needs. ◆ACC/DEC Rates Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifuging result. ◆Main Interface Function In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by soft touch the key. For the online monitoring of temperature and speed, the stability of temperature and speed during spinning can be viewed through the curve ◆Powerful System Setting Function Running data , error code record and operation record can be stored through the system setting. Chinese / English operation language optional. And user authority management and other characteristic functions can be managed as well.
Model Large Capacity Low Speed Refrigerated Centrifuge Model Number L720-R Orde No 0204180000 Max Speed Angle Rotor 7200r/min Swing Rotor 4000r/min Max RCF Angle Rotor 12166xg Swing Rotor 5600xg Max Capacity Angle Rotor 6x1000ml Swing Rotor 6x2400ml Time Setting Range two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min Timing mode Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time Temperature Setting Range -20℃~40℃,Setp 1℃ ajustable, The fast pre-cooling temerature can reach -20℃ Sammple Temperature Accuracy Ensure sample (liquid) temperature accuracy controlled to +1°C Temperature Accuracy ±2°C Speed Accuracy ±10r/min Voltage AC 220 ± 22V 50Hz Power 7.0kW Noise ≤65dB (A) Rotor ldentification Yes lmbalance Protection Yes Pre-cooling function Yes Computer Contral RS485 or RS232 Protection Function lmbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-speed Protection.Over-temperature Protection Dimension(WxDxH) 875x1020x970mm Package Dimension (WxDxH) 1080x1310x1340mm Net Weight 545kg

Model	Large Capacity Low Speed Refrigerated Centrifuge
Model Number	L720-R
Orde No	0204180000
Max Speed	Angle Rotor 7200r/min	Swing Rotor 4000r/min
Max RCF	Angle Rotor 12166xg	Swing Rotor 5600xg
Max Capacity	Angle Rotor 6x1000ml	Swing Rotor 6x2400ml
Time Setting Range	two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min
Timing mode	Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time
Temperature Setting Range	-20℃~40℃,Setp 1℃ ajustable, The fast pre-cooling temerature can reach -20℃
Sammple Temperature Accuracy	Ensure sample (liquid) temperature accuracy controlled to +1°C
Temperature Accuracy	±2°C
Speed Accuracy	±10r/min
Voltage	AC 220 ± 22V 50Hz
Power	7.0kW
Noise	≤65dB (A)
Rotor ldentification	Yes
lmbalance Protection	Yes
Pre-cooling function	Yes
Computer Contral	RS485 or RS232
Protection Function	lmbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-speed Protection.Over-temperature Protection
Dimension(WxDxH)	875x1020x970mm
Package Dimension (WxDxH)	1080x1310x1340mm
Net Weight	545kg
