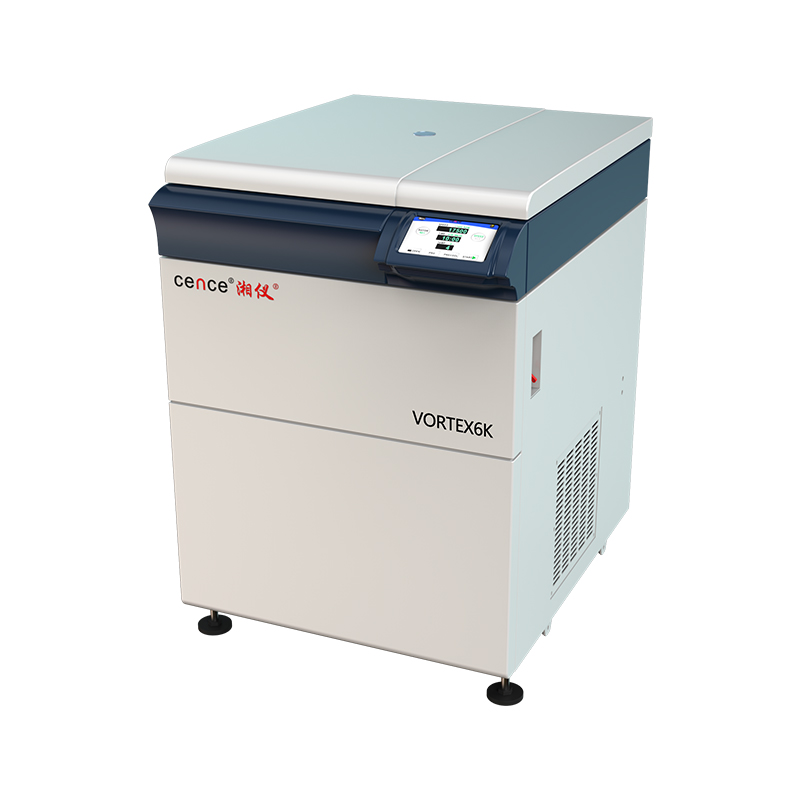

Large Capacity Low Speed Refrigerated Centrifuge VORTEX 6K

Large Capacity Low Speed Refrigerated Centrifuge VORTEX 6K

VORTEX 6K
Angle rotor 6x500ml；Swing rotor 6x1000ml
(Maximum speed of the main engine:6000rpm, 6680xg)
VORTEX 6K is an intelligent centrifuge developed by Cence/Xiangyi.It can monitor 1 to 100 centrifuges through intelligent terminal (computer), monitor the operation status of centrifuges, and save relevant records of centrifuge operation, Establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge, It meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments.Come with standard network interface, user can control the centrifuge by Mobile APP.

Consult

Features
Technical Parameters
Rotor Options

◆Automatic door opening & closing by just touch the key on the screen. Door lid come with intelligent anti pinch device. ◆Swing rotor 6x1000ml for biological product separation. It can also separate 6x400ml triple blood bags in one cycle, which greatly improves the production efficiency and separation effect. ◆Multiple protective functions, including the protection of over-speed, over-temperature, motor over-heating as well as door lid. ◆The rotor adopt 7075-T6 aviation grade alloy aluminum, hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report , tensile test report , chemical composition test report and processing test report can be provided. Centrifuge chamber adopt 2mm thick 316L stainless steel , Housing (3mm Q235 steel）, Containment(15mm Q235 steel), Diaphragm in door lid (3mm Q235 steel ) ◆The system adopts unified and standard Ethernet communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring. ◆Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps (set speed, time, temperature ), to meet the diversified experimental needs. ◆10 acceleration and 11 deceleration rate ( NO.10 rate can be self-defined), to prevent second emulsion or turbid, to achieve best centrifugation result. ◆In Manual mode,parameters can be set quickly. RCF and speed be shifted by just touch the key. ◆Powerful control system allows easy data capture, storage, and processing ◆(Optional)It can monitor 1 to 100 centrifuges through intelligent terminal (computer); Provide real-time connection with centrifuge with mobile APP; Built in help information in each interface; Make the centrifuge intelligent.
Model Large Capacity Low Speed Refrigerated Centrifuge Model Number VORTEX 6K Orde No 204260031 Max Speed Angle Rotor 6000r/min Swing Rotor 4200r/min Max RCF Angle Rotor 6680xg Swing Rotor 5100xg Max Capacity Angle Rotor 6x500ml Swing Rotor 6x1000ml Time Setting Range two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min Timing mode Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time Temperature Setting Range -20℃~40℃,Setp 1℃ ajustable Temperature Accuracy ±2°C Speed Accuracy ±10r/min Voltage AC 220 ± 22V 50Hz Power 4kW Noise ≤65dB (A) Rotor ldentification Yes lmbalance Protection Yes Pre-cooling function Yes Computer Control RS485 0r RS232 Protection Function Imbalance Protection,Rotor-identification,Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-SpeedProtection.Over-temperature Protection Dimension(WxDxH) 728x935x943mm Package Dimension (WxDxH) 920x1040x1200mm Net Weight 330kg

Model	Large Capacity Low Speed Refrigerated Centrifuge
Model Number	VORTEX 6K
Orde No	204260031
Max Speed	Angle Rotor 6000r/min	Swing Rotor 4200r/min
Max RCF	Angle Rotor 6680xg	Swing Rotor 5100xg
Max Capacity	Angle Rotor 6x500ml	Swing Rotor 6x1000ml
Time Setting Range	two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min
Timing mode	Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time
Temperature Setting Range	-20℃~40℃,Setp 1℃ ajustable
Temperature Accuracy	±2°C
Speed Accuracy	±10r/min
Voltage	AC 220 ± 22V 50Hz
Power	4kW
Noise	≤65dB (A)
Rotor ldentification	Yes
lmbalance Protection	Yes
Pre-cooling function	Yes
Computer Control	RS485 0r RS232
Protection Function	Imbalance Protection,Rotor-identification,Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-SpeedProtection.Over-temperature Protection
Dimension(WxDxH)	728x935x943mm
Package Dimension (WxDxH)	920x1040x1200mm
Net Weight	330kg
