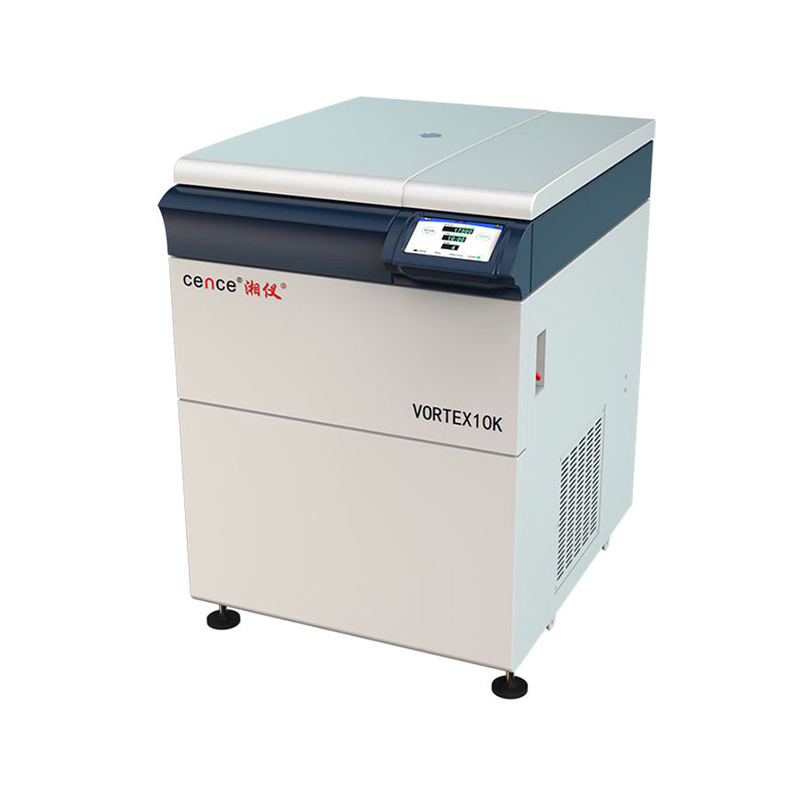

Large Capacity High Speed Refrigerated Centrifuge VORTEX 10K

Large Capacity High Speed Refrigerated Centrifuge VORTEX 10K

VORTEX 10K
Angle rotor 6x1000ml
(Maximum speed of the main engine:10000rpm, 17700xg)
VORTEX 10K is an intelligent centrifuge developed by Cence/Xiangyi, lt can monitor 1 to 100 centrifuges through intelligent terminal(computer), monitor the operation status of centrifuges,and save relevant records of centrifuge operation,Establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge,it meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments. Come with standard network interface, user can control the centrifuge by Mobile APP.

Consult

Features
Technical Parameters
Rotor Options

◆Automatic door locking system Automatic door opening & closing by just touch the key on the screen.Door lid come with intelligent anti pinch device. ◆Large capacity, High Speed Max sample processing capacity up t 6x1000 ml, Max speed up to 10000 r/min. Max RCF up to 17700xg, which greatly improves the production efficiency and separation effect. ◆Built-in safety Featuring multiple protection , Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on. ◆Reliable Material The alloy aluminum rotor adopt 7075-T6 aviation grade alloy aluminum,hard oxidation, corrosion resistance. from raw material to finished products, each process is strictly controlled. The flaw detection report, tensile test report , chemical composition test report and processing test report can be provided. Centrifuge chamber adopt 2mm thick 316L stainless steel, Housing (3mm Q235 steel ),Containment (15mm Q235 steel ), Diaphragm in door lid (3mm Q235 steel ). ◆Extensible The system adopts unified and standard Ethernet communication interface and provides key parameter point table , to facilitate system expansion and bring data into system monitoring. ◆Programmable Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps set speed, time, temperature ), to meet the diversified experimental needs. ◆ACC/DEC Rates Featuring 11 acceleration and 12 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifuging result. ◆Main Interface Function In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by soft touch the key. ◆Powerful System Setting Function Powerful control system allows easy data capture, storage, and processing. ◆Centrifuge Management System( Optional) It can monitor 1 to 100 centrifuges through intelligent terminal (computer); Provide real-time connection with centrifuge with mobile APP, Built in help information in each interface; Make the centrifuge intelligent.
Model Large Capacity High Speed Refrigerated Centrifuge Model Number VORTEX 10K Orde No 202253001 Max Speed 10000r/min Max RCF 17700xg Max Capacity 6x1000ml Time Setting Range two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min Timing mode Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time Temperature Setting Range -20℃~40℃,Setp 1℃ ajustable Temperature Accuracy ±2°C Speed Accuracy ±10r/min Voltage AC 220 ± 22V 50Hz Power 6.5kW Noise ≤65dB (A) Rotor ldentification Yes lmbalance Protection Yes Pre-cooling function Yes Computer Contral RS485 or RS232 Protection Function lmbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-speed Protection.Over-temperature Protection Dimension(WxDxH) 700x900x940mm Package Dimension (WxDxH) 920x1040x1200mm Net Weight 355kg

Model	Large Capacity High Speed Refrigerated Centrifuge
Model Number	VORTEX 10K
Orde No	202253001
Max Speed	10000r/min
Max RCF	17700xg
Max Capacity	6x1000ml
Time Setting Range	two mode 1min-99h59min ,1s-99min59s optional, default mode 1min-99h59min
Timing mode	Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time
Temperature Setting Range	-20℃~40℃,Setp 1℃ ajustable
Temperature Accuracy	±2°C
Speed Accuracy	±10r/min
Voltage	AC 220 ± 22V 50Hz
Power	6.5kW
Noise	≤65dB (A)
Rotor ldentification	Yes
lmbalance Protection	Yes
Pre-cooling function	Yes
Computer Contral	RS485 or RS232
Protection Function	lmbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-speed Protection.Over-temperature Protection
Dimension(WxDxH)	700x900x940mm
Package Dimension (WxDxH)	920x1040x1200mm
Net Weight	355kg
