Large Capacity High Speed Refrigerated Centrifuge VORTEX 22K

Large Capacity High Speed Refrigerated Centrifuge VORTEX 22K

VORTEX 22K

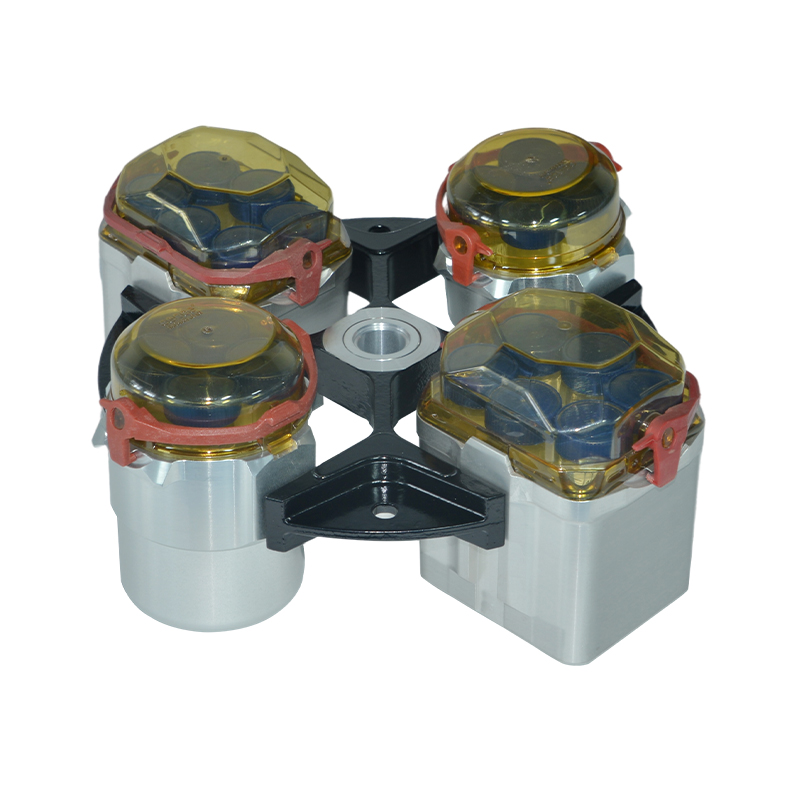

Angle rotor 6X500ml; Swing rotor 4x750ml
(Maximum speed of the main engine:22000rpm, 52020xg)
VORTEX 22K is an intelligent centrifuge developed by Cence/Xiangyi.It can monitor 1 to 100 centrifuges through intelligent terminal(computer),monitor the operation status of centrifuges,and save relevant records of centrifuge operation,Establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge,lt meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments.Come with standard network interface,user can control the centrifuge by Mobile APP.

Consult

Features
Technical Parameters
Rotor Options

◆Automatic door opening & closing by just touch the key on the screen.Door lid come with intelligent anti pinch device. ◆Max speed up to 22000r/min, Max RCF up to 52020xg. Angle rotor 6x500ml can efficiently separating biological products, Swing rotor sample processing capacity up to 4x750ml, which greatly improves the production efficiency and separation effect. ◆Featuring multiple protection,Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on. ◆Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps (set speed, time, temperature ), to meet the diversified experimental needs. ◆The rotor adopt 7075-T6 aviation grade alloy aluminum and titanium alloy ,hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report , tensile test report, chemical composition test report and processing test report can be provided. ◆The centrifuge chamber is made of 316L stainless steel and 2mm thick ( material certificate can be provided). ◆Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect. ◆In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key. ◆Powerful control system allows easy data capture, storage, and processing.
Model Large Capacity High Speed Refrigerated Centrifuge Model Number VORTEX 22K Orde No 202253003 Max Speed Angle Rotor 22000r/min Swing Rotor 4000r/min Max RCF Angle Rotor 52020xg Swing Rotor 3500xg Max Capacity Angle Rotor 6x500ml Swing Rotor 4x750ml Speed Accuracy ±10r/min Time Setting Range two mode 1min-99h59min,1s-99min59s optional,default mode 1min-99h59min Timing mode Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time Temperature Setting Range -20℃~40℃ (1℃ adjustable) Temperature Accuracy ±2°C Rotor Identification Yes Imbalance Protection Yes Pre-cooling function Yes Computer Control RS485 or RS232 Protection Function Imbalance Protection,Rotor-identification,Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-Speed Protection,Over-temperature Protection Automatic Door Lid Opening Yes Noise ≤65dB (A) Voltage AC 220 ± 22V 50Hz Power 5kW Dimension(WxDxH) 700x935x940mm Package Dimension (WxDxH) 920x1040x1200mm Net Weight 342kg

Model	Large Capacity High Speed Refrigerated Centrifuge
Model Number	VORTEX 22K
Orde No	202253003
Max Speed	Angle Rotor 22000r/min	Swing Rotor 4000r/min
Max RCF	Angle Rotor 52020xg	Swing Rotor 3500xg
Max Capacity	Angle Rotor 6x500ml	Swing Rotor 4x750ml
Speed Accuracy	±10r/min
Time Setting Range	two mode 1min-99h59min,1s-99min59s optional,default mode 1min-99h59min
Timing mode	Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time
Temperature Setting Range	-20℃~40℃ (1℃ adjustable)
Temperature Accuracy	±2°C
Rotor Identification	Yes
Imbalance Protection	Yes
Pre-cooling function	Yes
Computer Control	RS485 or RS232
Protection Function	Imbalance Protection,Rotor-identification,Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-Speed Protection,Over-temperature Protection
Automatic Door Lid Opening	Yes
Noise	≤65dB (A)
Voltage	AC 220 ± 22V 50Hz
Power	5kW
Dimension(WxDxH)	700x935x940mm
Package Dimension (WxDxH)	920x1040x1200mm
Net Weight	342kg
